OverviewCentral Semiconductor can screen COTS bare die products to MIL-PRF-38534 (Class H and K equivalents), to MIL-PRF-19500 (class HC and KC equivalents), and to customer-provided source control drawings.
Central's 45 year reputation for exceptional quality ensures that these up-screened devices are ideal for the latest and most demanding high reliability applications, including industrial, military/aerospace, and space level.
To ensure rapid product development and product availability, Central maintains an extensive wafer inventory and test capacity in its Long Island, NY facility.
- Small signal transistors
- Bipolar power transistors
- EOS protection devices (TVS)
Up-screened bare die part number nomenclature:

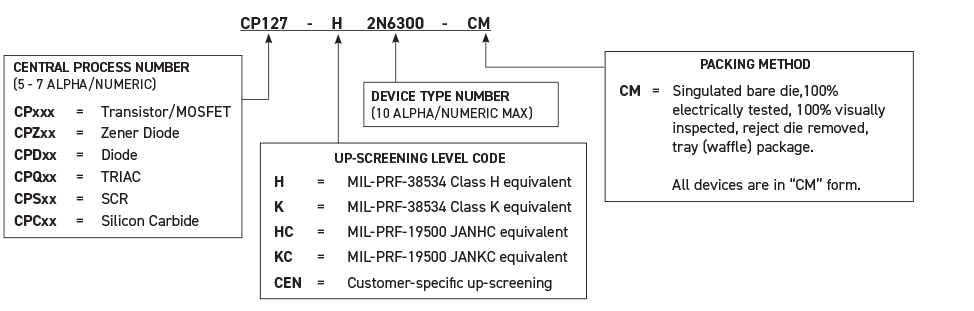

The following is a guide to Central's up-screened and custom device part numbers. Example part number - CP127-H2N6300-CM: Bipolar transistor die, up-screened to MIL-PRF-38534 Class H equivalent, 2N6300 device, packaged in chip tray.
MIL equivalent bare die up-screening
For customers requiring high reliability MIL-equivalent devices, commercial-off-the-shelf (COTS) bare die products are up-screened to MIL-PRF-38534 Class H and K equivalents, and to MIL-PRF-19500 Class HC and KC equivalents. Central offers a portfolio of these up-screened products.
Currently available up-screened die:
Central currently has inventory of the following up-screened bare die. Please contact your Central Sales Representative to learn more about Central’s die up-screening capabilities.
|Part Number||Type||Principle Device|
|CP127-H2N6300-CM||Class H equivalent per MIL-PRF-38534||2N6300|
|CP230-H2N6039-CM||Class H equivalent per MIL-PRF-38534||2N6039|
|CP310-HMPSA42-CM||Class H equivalent per MIL-PRF-38534||MPSA42|
|CP336V-H2N5551-CM||Class H equivalent per MIL-PRF-38534||2N5551|
|CP392V-K2N3904-CM||Class K equivalent per MIL-PRF-38534||2N3904|
|CP588-HBC556B-CM||Class H equivalent per MIL-PRF-38534||BC556B|
|CP591X-H2N2907A-CM||Class H equivalent per MIL-PRF-38534||2N2907A|
|CP635-H2N3791-CM||Class H equivalent per MIL-PRF-38534||2N3791|
|CP647-HPMD19K100-CM||Class H equivalent per MIL-PRF-38534||PMD19K100|
|CP705V-HCZT4033-CM||Class H equivalent per MIL-PRF-38534||CZT4033|
|CP710V-HMPSA92-CM||Class H equivalent per MIL-PRF-38534||MPSA92|
|CP767V-H2N3467-CM||Class H equivalent per MIL-PRF-38534||2N3467|
High reliability bare die test flows:
Click the button below to view Central's test flows for MIL-PRF-38534 Class H and K equivalents, and MIL-PRF-19500 Class HC and KC equivalents.
Contact us to purchase:Please contact Central directly or through one of Central's regional representatives to purchase up-screened die: Contact Sales Worldwide Field Representatives
Custom bare die up-screening
Your vision is our mission. Central excels at listening to customers’ challenges and designing custom solutions that other manufacturers have no interest in pursuing.
At times, customers do not require full MIL equivalent testing, and instead provide Central with specific testing requirements. For other applications, a customer may require even more intensive testing than MIL equivalent. Central excels at designing a customer-specific solution to support the full array of design requirements that our customers may specify.
Customer SCDs can be stored confidentially with Central to ensure that future products adhere to the same testing. Customers can update SCDs at any time. To ensure further design security, custom devices are given unique CEN part numbers; these part numbers are not used for any other customers or devices.

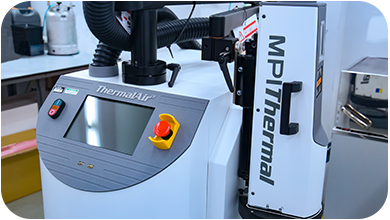

Thermal cycle testing

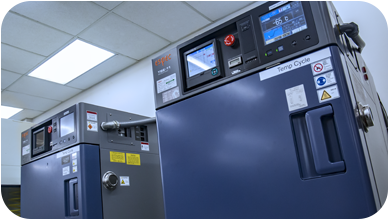

Temperature cycle chamber testing
Scanning Electron Microscopy (S.E.M.)

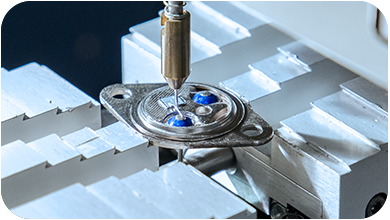

Wire pull & die shear testing
